1.Mechanical Drawing:
PDF
2.Images:
3D
2D
3.Brouchure:
PDF
|
|
|
Specification |

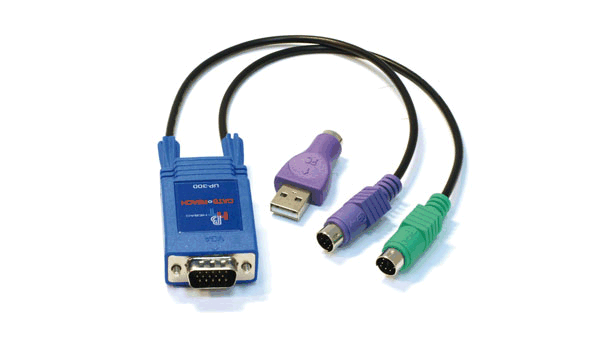

UP-300 |
Model | UP-300 |
Models | Interface converter module |
KVM port interface | Screen/keyboard/mouse |
Control port 2 interface | Screen |
Keyboard |
Mouse |
|
RJ-45 |
HDB-15 ( Male ) |
6 pin mini-DIN ( Male )※ Through PS/2 transfer USB adapter, keyboard, mouse, signals can be converted to USB |
6 pin mini-DIN ( Male ) |
|
LED lights | Green light:CAT5 cable connected state; yellow light: computer power status |
The power supply | Through the computer's PS/2 port power supply |
Material | Plastic shell ( blue ) |
Weight | 120g |
|
|
